1.build image镜像

---

在 Kubernetes 中部署应用时，最常用、最直接的方式是通过image字段指定镜像。所以我们

根据需要自己编译一个image镜像。

• server.js

const express = require('express')
const query = require('./db');
const axios = require('axios');
const schedule = require('node-schedule');
const moment = require('moment');
const compression = require('compression');
const { v4: uuidv4 } = require('uuid');


const app = express();
// 使用 compression 中间件
app.use(compression());
// 解析 JSON 请求体
app.use(express.json());

根据业务具体实装
......

// 启动服务器
const port = 8081;
app.listen(8081, () => {
  console.log(`服务器运行在 http://localhost:${port}`);
});

• Dockerfile

FROM node:latest

# 设置工作目录为 /usr/src/app
RUN mkdir -p /usr/src/app

WORKDIR /usr/src/app
COPY . /usr/src/app

# 暴露容器的 8081 端口
EXPOSE 8081

# 启动 Express 应用
CMD ["node", "server.js"]

• 执行下面的命令build镜像

docker build --progress=plain -t service-notification .

# 查询刚刚build的 service-notification的 镜像id
docker images

# 给镜像打远程仓库的tag
docker tag 5e66f66a0fd0 123.57.154.22:5001/service-notification:latest

• 往远程仓库推送镜像

docker push 123.57.154.22:5001/service-notification:latest

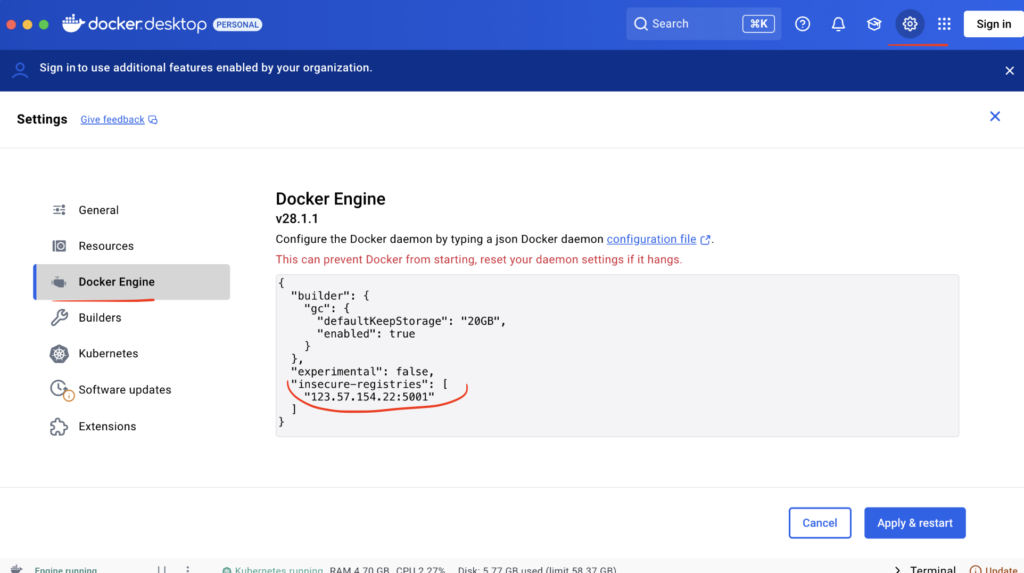

2.修改docker desktop的配置

---

因为我搭建的是http的镜像私有仓库，从别的docker客户端访问拉取镜像，是不安全，被禁止的，所以需要修改 /Users/xxx/.docker/daemon.json文件，或者从docker desktop UI直接修改。

添加下面的配置，然后重启docker

"insecure-registries": [
    "123.57.154.22:5001"
  ]

3.在k8s部署应用

---

• 创建namespace

kubectl create namespace wechat-applet-services

• 创建访问私有仓库的secret

kubectl create secret docker-registry docker-registry-secret \
  --docker-server=123.57.154.22:5001 \
  --docker-username=私有仓库username \
  --docker-password=私有仓库password \
  -n wechat-applet-services

• 准备deployment.yaml

# service-notification-deployment.yaml
# kubectl apply -f service-notification-deployment.yaml -n wechat-applet-services
apiVersion: apps/v1
kind: Deployment
metadata:
  name: service-notification-deployment
  labels:
    app: service-notification
spec:
  replicas: 1  # 创建1个Pod副本
  selector:
    matchLabels:
      app: service-notification
  template:
    metadata:
      labels:
        app: service-notification
    spec:
      containers:
      - name: service-notification
        image: 123.57.154.22:5001/service-notification:latest
        ports:
        - containerPort: 8081
        resources:
          limits:
            memory: "128Mi"
            cpu: "100m"
      imagePullSecrets:
      - name: docker-registry-secret

kubectl apply -f service-notification-deployment.yaml -n wechat-applet-services

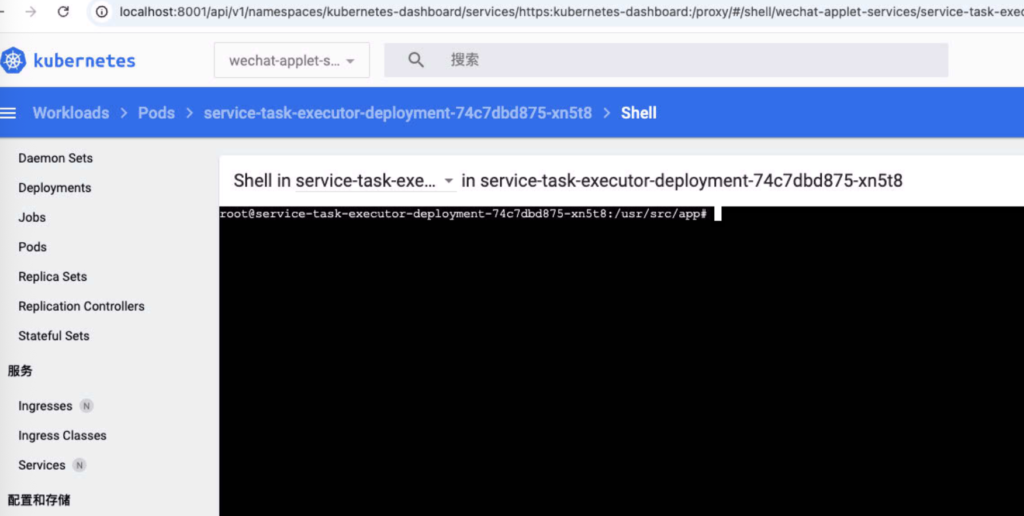

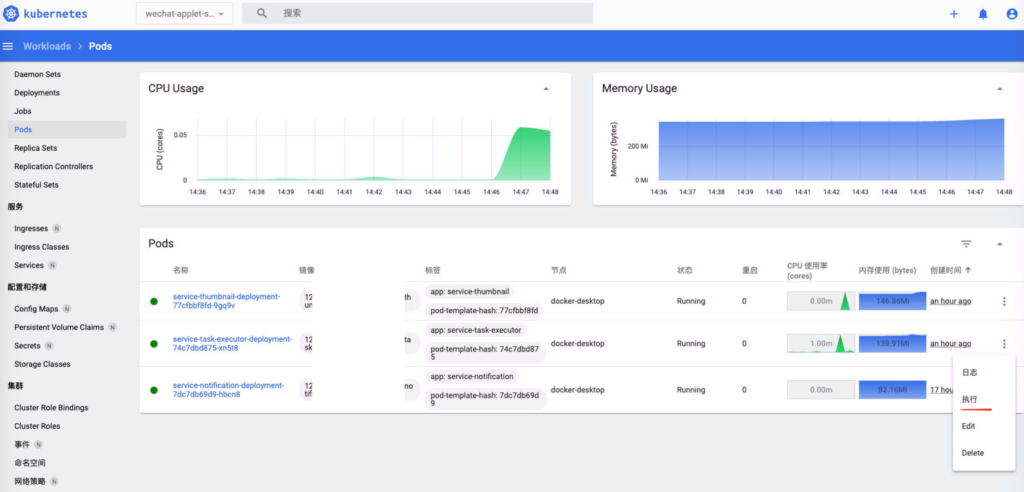

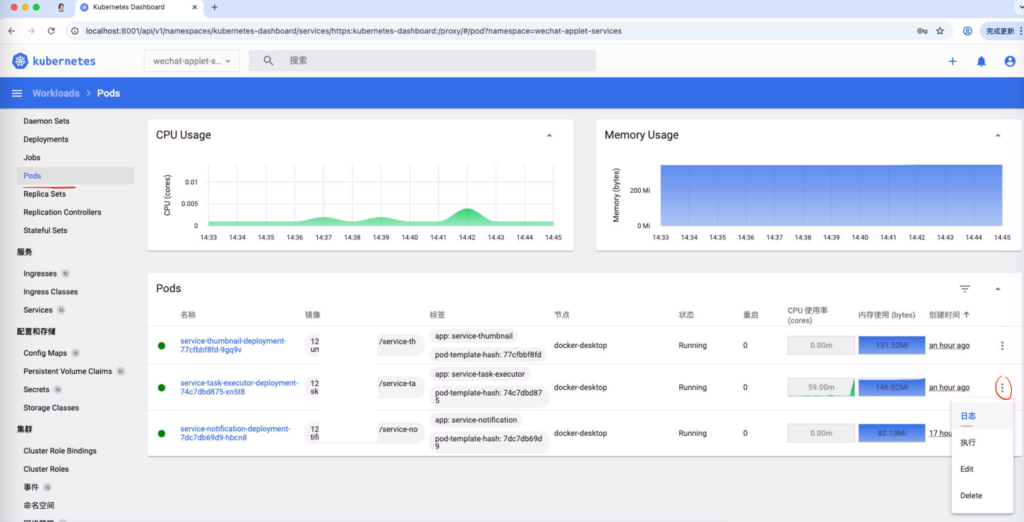

用浏览器从k8s dashboard 可以看下的状态

# 创建一个访问dashboard的token
kubectl -n kubernetes-dashboard create token admin-user

# 浏览器打开下面网址，填写token，登录
http://localhost:8001/api/v1/namespaces/kubernetes-dashboard/services/https:kubernetes-dashboard:/proxy/#/login
